Over a Year With a Vintage MCS Receiver - How Is It Holding Up?

Getting my first vintage receiver was probably the most exciting piece of my foray into vintage audio gear. While I've changed other components of my setup around several times, this is the one piece of the puzzle that's remained constant over the past year plus, and it's not from a brand most people will immediately recognize. Here's why.

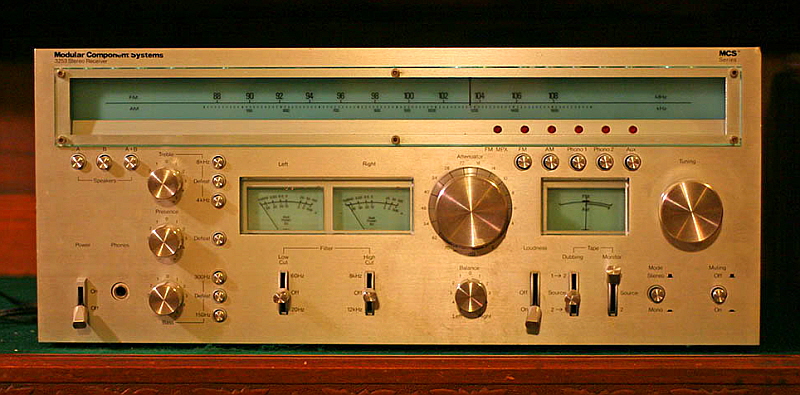

This receiver is a Modular Component Systems (MCS) model 3275. Back in the day, MCS was JC Penney's own in-house line of stereo equipment and while they aimed to take a chunk out of the market the likes of Pioneer, Kenwood, and Sansui had a firm grasp on, they were never really taken seriously by enthusiasts - within good some reason.

MCS receivers had all kinds of looks; from the knockoff Pioneer-look of the 3248 to the absolute "WTF-ness" of the 3253.

It wasn't just the lack of identifiable branding that relegated MCS to the bottom of the barrel regarding vintage audio equipment. A lot of their gear had a reputation of being a bit... off, let's say.

Aesthetically their gear often favored an over-styled, inelegant aesthetic that tried too hard to convey an aura of complexity and sophistication that was typical of lower budget equipment. On that same note, a good chunk of MCS gear did end up developing a reputation for being low quality and unreliable. They were handily passed over in favor of the bigger brands as a result, even to this day.

But I didn't say all of MCS' gear was bad. Their Japanese built products have actually garnered a pretty positive reputation over their Taiwanese built stablemates in recent years. A lot of MCS' gear was outsourced to existing overseas manufacturers, and in the case of it's turntables and a handful of it's receivers, JC Penney turned to Technics and NEC respectively to take on the job. The result were products that certainly bore the loud, overstyled look that was shared across the entire lineup, but they were built with a standard that would normally only be found in the usual big Japanese name brands.

The MCS 3275 was one of those NEC built receivers. While there isn't much visible evidence pointing to this beyond the "Made in Japan" label on the back, NEC actually marketed a receiver called the AUR-8075G, which was identical to the MCS 3275, with the exception of a black faceplate. Nonetheless, this receiver gained the reputation as one of MCS' most powerful models at 75 WPC, bested only by the 3285 and the 3125 at 85 WPC and 125 WPC respectively. That was enough to give them some newfound respect in the current world of thousand-plus dollar Pioneer SXs and Kenwood KRs.

It's certainly a polarizing looking contraption though. The Pioneers of the era have this timeless, elegant design that's been ripped off by almost every other company, MCS included - at least until the industry as a whole pivoted to non-descript black plastic crap. Instead, JC Penney went "screw that" and opted for the most batshit arrangement of knobs, switches, and buttons possible on a device this size. It's centerpiece feature was two five-band graphic equalizers that dominated the silver front housing. But the real eye catcher for me? That it's the most powerful MCS receiver with analog VU meters. You gotta have 'em.

Also, it's not a "volume knob". It's an "attenuator" - you unsophisticated cretin.

I won't lie - I still do strongly prefer the "Pioneer-look" of the era, but the MCS 3275 strikes me as something more otherworldly than "ugly". It looks like it belongs on the equipment rack of a Cold War-era space station, not the posh sitting room of some stuck-up audiophile - let alone the shelf of a halfway broke college graduate. It doesn't look like anything else from the time period, and I think that's pretty damn cool.

The 3275 packs quite a beefy power circuit.

I picked my 3275 up for $500 even, which is around the normal going rate for one of these monsters in this day-and-age. There really wasn't anything wrong with it apart from the usual problems pertaining to dirty switches and potentiometers. I simply popped the cover and front plate and gave each of them a generous hosing with Deoxit, and that was it.

While I was inside, I took a moment to check if anything else inside the unit was suspect and thankfully, everything looked visually straight, with barely even a speck of dust. There were no bulging capacitors and all the bulbs still worked, so I buttoned it back up and got to listening.

Now, even though I occasionally work on gear like this, I still don't have a well versed understanding of what performance metrics to look for that separates a "good" receiver from a "bad" one outside of rated power, nor do I have the tools to objectively analyze it's performance. All my thoughts here are just based off how well it appears to work with my existing equipment. I ran the 3275 across two different speaker sets: my Klipsch R-51M bookshelf pair and my restored 1976 Speakerlab 7 floor speakers.

For inputs I used both my MK1 and MK2 Technics SL-1600 turntables paired with the Audio Technica AT-VM95ML and AT-155LC cartridges, and over AUX via a dirt cheap Chinese "C93S" Bluetooth transmitter. The latter certainly isn't the most ideal way to test the quality of audio over AUX, but I know I'm going to play more ripped MP3s and stream more Spotify over Bluetooth than I'm ever going to with FLAC over a wired connection - which is almost never.

Without running loudness control or the equalizer, my main observations about the receiver is that it doesn't seem to "flavor" the audio in any undesirable way. Everything it spits out is as clear and distortion-free as you'd expect it to sound from the source, which is about the highest compliment I can give it considering I have nothing else to compare it to. Turning on loudness control helps elevate the somewhat subdued low and high ends at lower volumes though, and adds a rich layer to the overall sound which I really like.

But kicking on the EQ is where the fun really starts. I run a pretty typical arrangement of scooping the mids slightly while pumping up the low and high end, and the difference is substantial. The overall soundstage just becomes a lot more vibrant and punchy. Acoustic and jazzy tracks sing with full detail while more heavy genres, especially metal and hip-hop thunder with authority. Vinyl in particular sounds exceptional through the 3275 and out of the Speakerlab 7s. Even the tuner is sounds pretty nice, though I have little reason to listen to the radio these days.

It's all just a ton of fun to listen to, and while the choice of speaker is really the most important bit in this whole equation, the sheer amount of controls on the receiver offers a lot of versatility for any listening preference.

With that, I find the 3275 has little trouble driving the speakers I've hooked up to it so far. It's frankly too powerful for just the R-51M pair, which I bought primarily because they were among the best bang for your buck in a passive speaker that didn't require a whole other room to set them up in. They only need a fraction of this receiver's total power to be effectively driven.

The Speakerlab 7 pair is another story entirely.

It's common, albeit contested advice to avoid hooking up non-matching components together - in this case, an 8 ohm receiver to a pair of 4 ohm speakers since the speakers will draw more power from the receiver at more demanding frequencies across their impedance curves. Some argue this actually largely depends on the quality of the speakers and amp, and I find the 3275 has little trouble driving the Speakerlab 7s at all. They easily get as loud as I'm willing to push them for the sake my own hearing - and my neighbors with the volume knob cranked... sorry, attenuator attenuated to about half.

It does get pretty toasty when it is pushing that much power though and the bulbs start to flicker when my speakers hit deep, heavy lows. I don't hear anything indicating this to be a potential power delivery problem, but I have read that changing the old capacitors out might resolve the flickering lights. I might even entertain adding a fan above the heatsinks to help circulate air around them a little better, though I'm not sure if I should worry too much about the present thermal performance.

Similarly, I've started to notice on the few recent occasions that the sound suddenly appears to be muffled, before gradually returning to normal clarity. It could just need another switch cleaning but then again, I think a full capacitor rebuild would probably also work wonders in resolving, or at least narrowing down the root cause of this issue. Being that it's a four decade old receiver, I've always anticipated having to do this job eventually anyways, so perhaps it is indeed getting to that time.

In terms of usability, this is a very feature packed device for it's age. It supports two phono inputs, two separate pairs of speakers that can be run in conjunction if one desires, noise filters, and of course: the two five-band equalizers. The 3275 just about does it all, though you're not going to find any modern conveniences here. This is not anywhere close to a modern day AV receiver, and it's never going to be. That's kind of the appeal, really.

Even then, I absolutely had to get Bluetooth on this thing. As much as I enjoy the "ritual" of spinning vinyl, music is just so much easier to discover and consume on digital formats that I would not be enjoying this setup anywhere near as much without it. The aforementioned C93S Bluetooth transmitter/receiver combo feels every bit as dirt cheap as it was, and it probably doesn't support the best codecs for audio either. But it works just good enough for my ears without breaking the bank, so I'd say it's pretty damn good for that.

To say I'm happy then, with how this roll of the dice on such a important piece of equipment would be an understatement. The 3275 is basically everything I ever wanted out of an old school, silver face, monster receiver. It has a few quirks I still need to sort out, but it's pretty damn close to perfect in my book and seems to suit my present needs well. Unless something like an SX-1980 falls into my lap, I'm going to have a hard time convincing myself to replace it with anything else.

Is it truly a Pioneer or Kenwood killer though? I'm not qualified enough to give a definitive answer to that. As far as I can tell, it's well built and does all the right stuff despite the stigma around it's brand, Versus comparable receivers like the SX-980 and Nine G, it's a definite contender in terms of value, but I still won't fault anybody for lusting after those receivers after taking a look at the 3275 and it's admittedly ridiculous faceplate.

Yet it's nice to know that quality options like this are still out there for people who are priced out of decent examples from the more well-known brands. To me, finding gear like this is more interesting than paying out the ass for something that will ultimately accomplish the same task, maybe a few decimal points better for the well trained ear. I do hope to try more of these oddball "off-brands" in the future, but the MCS 3275 is no joke, and I think anybody who wants a solid vintage receiver needs to give the Japanese made MCS lineup a serious look.
